Schnellkupplungen Kamlok Mutterteil mit Außengewinde 1 1/2

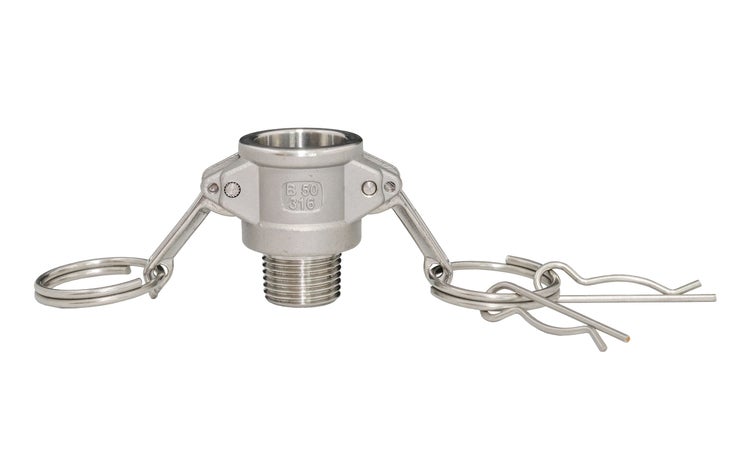

Camlock Coupling – Female Part with 1 1/2 Male Thread

EN 14420-7 (DIN 2828) · Stainless Steel 316 · Temperature –40°C to +95°C · With NBR Seal
Compatible with 1 1/2 Camlock male couplings

This Camlock female coupling with 1 1/2 male thread is designed for fast, secure and tool-free hose and pipeline connection. The quick-release lever locking system allows coupling and uncoupling within seconds — ideal for flexible installations, frequently replaced hose lines and mobile or temporary systems.

Manufactured from stainless steel 316, the fitting offers excellent corrosion resistance, medium stability and long operational life. It is widely used in industrial processing, chemical plants, agricultural fluid systems, tank loading stations, machinery maintenance, fuel and water transfer and many other environments where reliability and durability are essential.

Built to EN 14420-7 (DIN 2828), this connector is fully compatible with standard Camlock systems.
Equipped with an NBR sealing ring, it delivers reliable sealing performance across a working temperature range of –40°C to +95°C, ensuring tightness under pressure, vibration or dynamic flow conditions.

A 1 1/2 Camlock male adapter connects directly to this component, forming a robust and leak-resistant coupling.

Technical Data
Specification Value
Coupling type Camlock female (B-Type)
Thread 1 1/2 male thread
Standard EN 14420-7 / DIN 2828
Material Stainless Steel 316
Seal NBR sealing gasket
Temperature range –40°C to +95°C
Compatible with 1 1/2 Camlock male coupling
